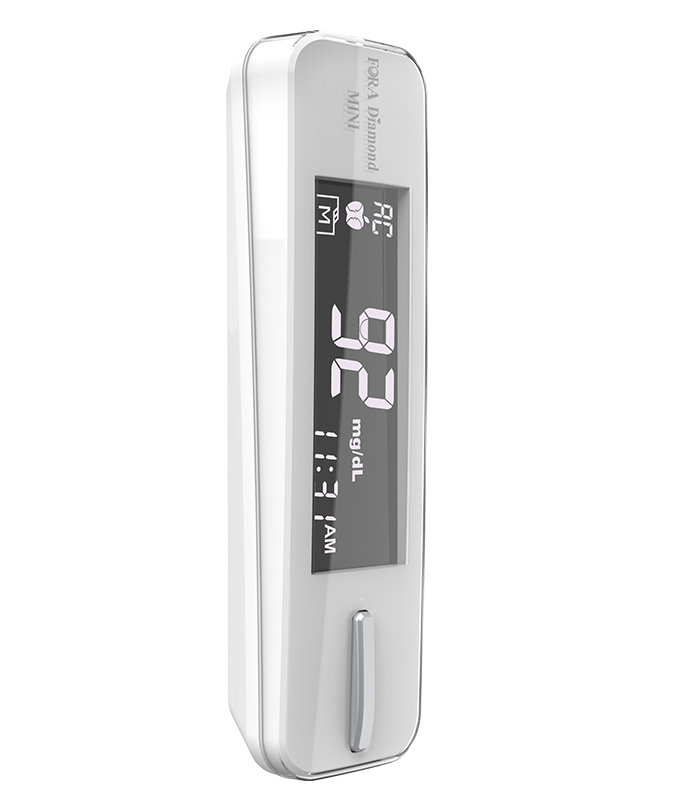

FORA Diamond MINI

~~$25.00~~$20.00 (5 customer review)

The GDH-FAD test strips can eliminate interference from oxygen variation and non-glucose sugar such as maltose and galactose, providing you with the most reliable and accurate results.

GDH-FAD

The GDH-FAD test strips can eliminate interference from oxygen variation and non-glucose sugar such as maltose and galactose, providing you with the most reliable and accurate results.

Superior Sip-in Technology

Blood application made easier and faster with a light touch. Supported by our Superior Sip-in (SSI) technology, it allows blood to be easily drawn out onto the absorbent area of the strip even when moving. This reduces the chances of strip wastage and boosts accurate glucose detection.

Superior Sip-in TechnologyNew lancing comfort – smart and simple!

FORA’s lancing comfort device provides a more positive testing experience by minimizing the needle vibration as it penetrates through the skin.

Specification

Model No.	Diamond Mini
Blood Testing	．Sample Size: 0.5 μL ．Measuring time: within 5 seconds ．Alternative Site Testing: Capillary and Venous
Test Strips	．Enzyme: GDH-FAD ．No Strip Coding
Memory Capacity	．a memory capacity of 450 tests with the date and time ．AC/PC in memory ．7/14/21/28/60/90- day averages
Functions	．4 sets of daily alarms
Data Transmission	．Micro USB ．Bluetooth
Display	．LCD backlight
Contrasting Brightness	．YES
Portability	．YES
Rechargeable Battery	．YES
Power Source	．Li-Polymer
Dimensions and Weight	．93.0mm(L) × 26.03mm(W) × 5.57mm(H) ．26.8g (Without battery)
Measuring Conditions	．Storage Condition : -20°C to 60°C below 95% Relative Humidity ．Operating Condition : 10°C to 40°C below 85% Relative Humidity (non-condensing) ．Result Range : 20-600mg/dL (1.1-33.3mmol/L)

step 1. Sit back and relax

The Diamond Mini is designed to make glucose testing easier and simpler. No strip coding is required.

step 2. Perform a control solution test

Insert the test strip to turn on the meter, and push the button to mark this test as a control solution test displayed as QC. Apply the control solution and compare the result with the range printed on the test strip vial. The result displayed on the screen should fall within the range.

step 3. Perform a blood glucose test

Insert the test strip to turn on the meter. Wait for the meter to display the blood drop symbols. Mark your reading as pre-meal or post-meal measurements by pushing the button.

Turn the dial and select a puncture depth. Hold the lancing device tip firmly against the selected punctured site. Push the release button to obtain a drop of blood.

Gently apply blood to the absorbent hole on the test strip. Blood will be drawn out by capillary action and the confirmation window will be completely filled.

After the meter counts down to 0, the test result will be displayed and automatically saved in the memory.

step 4. Result interpretation

A symbolic message will be displayed with the test result. It is intended for your reference only. Please consult your doctor for your blood glucose target range.

Should you have any concerns about your blood glucose levels, please consult your doctor immediately.

step 5. Data transmission

Test results can be uploaded via Bluetooth connectivity to devices with iOS/Android as the operating system or via micro USB connection to a personal computer.

Bluetooth
Turn off the meter. The Bluetooth indicator light next to the button will flash. Software on iOS/Android will be initiated automatically. New test results will be detected and transmitted automatically.

USB
Connect the meter to your computer or TeleHealth gateway with the USB cable. “USB” will be displayed on the screen. New test results will be detected and transmitted automatically.
